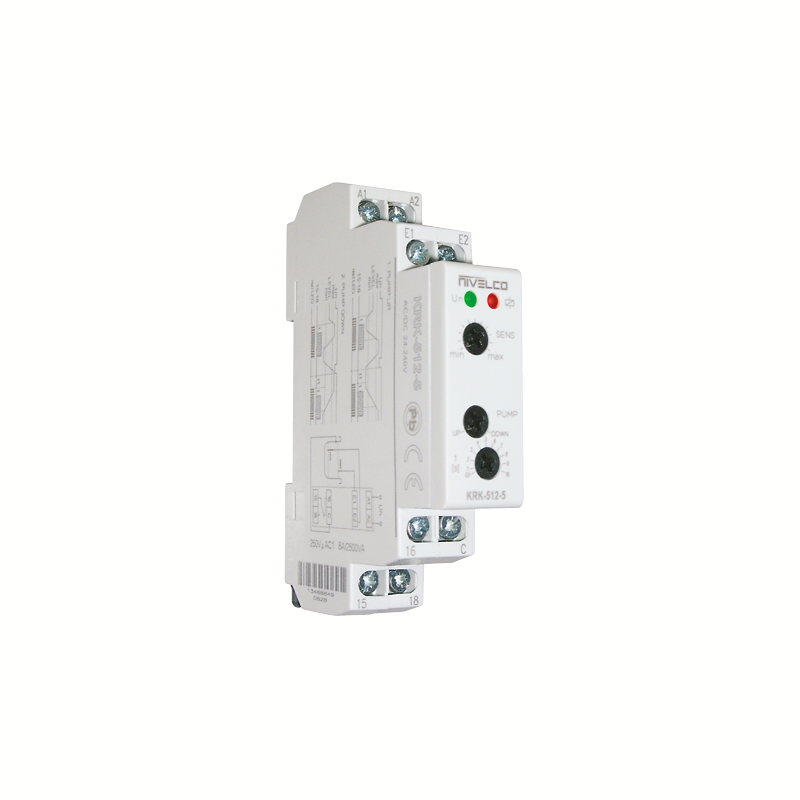

KRK-512-5 NIVOCONT CONDUCTIVE LEVEL CONTROL RELAY
LEVEL CONTROL RELAY
₹10000.00
The Nivocont KRK-512-5 is a high-precision level switch engineered for reliable level detection in industrial environments. Its robust construction and versatile design make it ideal for use in liquids, powders, and granulated solids, ensuring accurate and consistent performance across various applications.
Key Features:
- High Sensitivity: Adjustable sensitivity from 5 KΩ to 100 KΩ for precise level detection.
- Robust Construction: Durable materials ensure long-lasting performance in harsh conditions.
- Easy Installation: Designed for quick and simple mounting, reducing setup time.
- Versatile Applications: Suitable for detecting levels in liquids, powders, and granulated solids.
- Reliable Performance: Consistent operation with a high degree of accuracy.
Technical Specifications:
- Probe Voltage: 3.5 V AC
- Probe Current: < 0.2 mA AC
- Sensitivity: Adjustable: 5 KΩ to 100 KΩ
- Max. Cable Capacity: 800 nF
- Response Time: Max. 400 ms
- Setting Accuracy (Mechanical): ±5%
- Delay: Adjustable: 0.5 to 10 s
- t₁ Delay: 1.5 s
- Relay Output: 1x SPDT
- Switching Voltage: 250 V AC1, 24 V DC
- Switching Current: 8 A AC1
- Switching Power: 2500 VA AC1, 240 W DC
- Electrical Strength: 3.75 kV
- Mechanical Life-span: 3 x 10⁷ switches
- Electrical Life-span: 0.7 x 10⁵ switches
- Power Supply (Un): 24 V to 240 V AC/DC
- Voltage Range Allowed: Nominal voltage -15% to +10%
- Power Consumption: Max 2.5 VA / W
- Ambient Temperature: -20 °C to +55 °C
- Electrical Connection: Max. 2.5 mm² / with insulation 1.5 mm²
- Electrical Protection: Class II
- Ingress Protection: IP 20
- Mechanical Connection: DIN EN 60715 rail
- Mass: 72 g
Applications:
- Chemical and Petrochemical Industries
- Food and Beverage Processing
- Water and Wastewater Treatment
- Pharmaceutical Manufacturing
- Power Generation
Why Choose Nivocont KRK-512-5?
- Precision and reliability in level detection.
- Durable and long-lasting design.
- Suitable for a wide range of industrial applications.
- Easy to install and maintain.
